LABSYSTEM

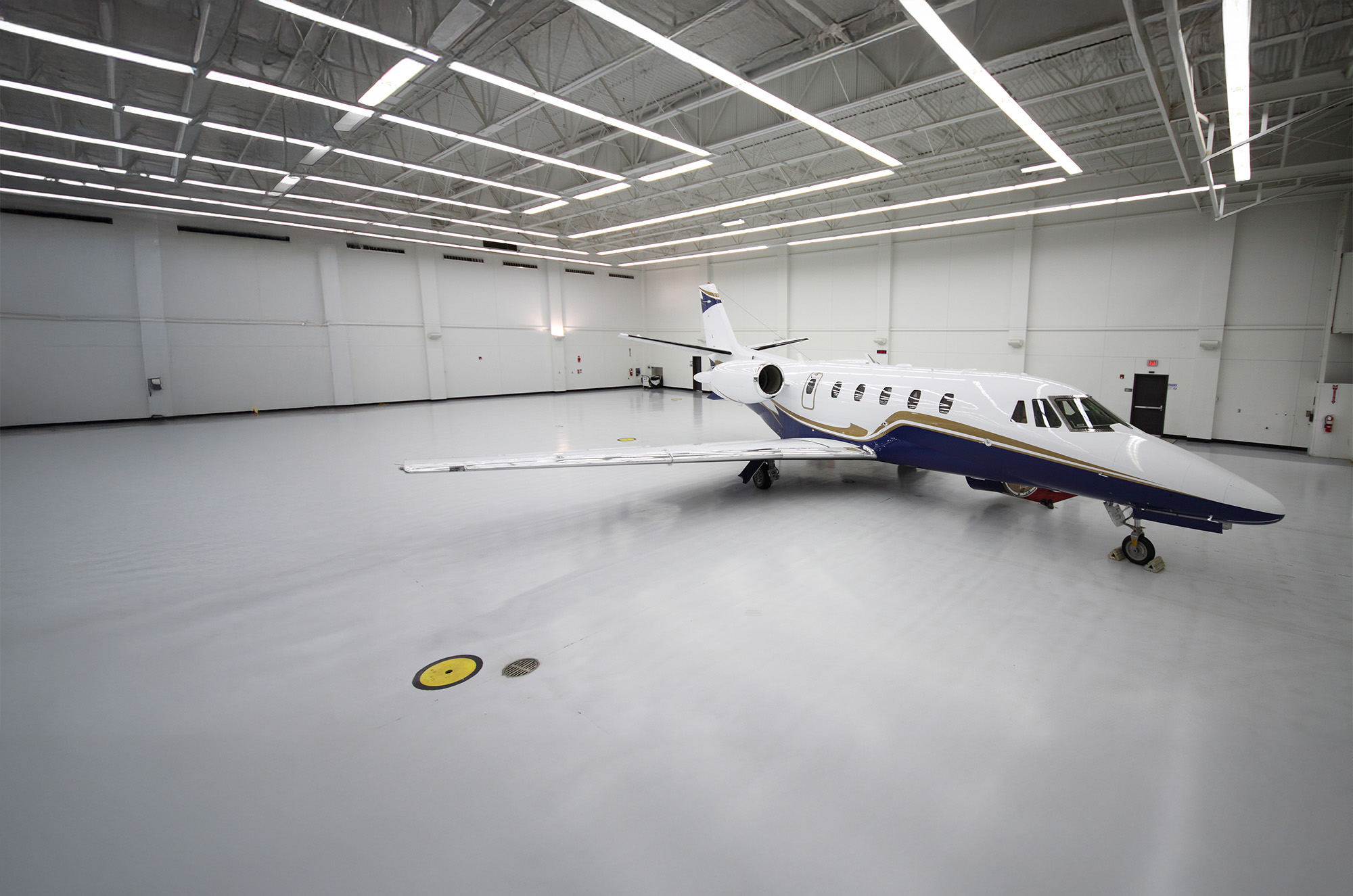

FOR AIRPLANE HANGARS
High-performance epoxy flooring system engineered for aerospace hangars
Aircraft hangars require flooring systems that deliver exceptional durability, chemical resistance, and long-term performance, even under the harshest operational conditions. From continuous mechanical stress and exposure to aggressive chemicals to UV radiation and temperature extremes, these environments demand flooring solutions that perform without compromise—ensuring safety, reliability, and visual appeal.
LABSURFACE has engineered LABFLOOR 4E, a specialized 4-coat epoxy-based system designed specifically for aerospace and industrial environments. Installed at 25–31 mils, LABFLOOR 4E combines advanced epoxy and polyurethane technologies to deliver superior resistance to abrasion, harsh chemicals (such as Skydrol, jet fuels, hydraulic fluids, and more), and UV degradation, ensuring long-lasting color stability and protection.
Discover the recommended system configurations to find the perfect match for hangar flooring requirements.
DOWNLOAD THE BROCHURE (PDF)
LABFLOOR 4E HANGAR
4-Coat Epoxy Flooring System for Airplane Hangars
LABFLOOR 4E HANGAR is a high-performance, easy to maintain, solid color, 4-coat flooring system installed at 25–31 mils. It is built with high performance LABPOX® epoxy resins which includes Pinhole Mitigation Technology. The system consists of LABPOX® PRIMER, 2 coats of LABPOX® 30/40 UV pre-tinted (Grey or Super Opaque White) and protected with LABFENDER™ high wear urethane for better overall durability.
LABFLOOR 4E HANGAR floor system combines advanced epoxy and polyurethane technologies that delivers an easy to maintain, smooth surface, with excellent chemical and abrasion resistance. Its superior UV resistance ensures long-term color stability, while its exceptional scratch protection safeguards the surface against wear and tear.
COLORS WITH SUPERIOR PERFORMANCE
The LABPOX® 40 UV SUPER OPAQUE WHITE offers a bright, high-opacity finish with three times the coverage of standard white epoxy, making it ideal for hangar floors. Alternatively, opt for Light Concrete or Medium Concrete tones for versatile, contemporary aesthetics. This 100% solids epoxy delivers enhanced UV resistance (Delta E = 5), exceptional durability, and resistance to blushing and fisheyes for flawless results. With its long 60-minute working time and low-odor, low-VOC formulation, LABPOX® 40 UV is also eligible for LEED-certified projects, ensuring a sustainable and high-performance solution.
WHITE FLOOR
1- PRIMER
LABPOX® PRIMER
VOC-Free Epoxy Primer
THICKNESS: 6-8 mils
2- BASECOAT #1
LABPOX® 40 UV SUPER OPAQUE WHITE
100% Solids, High-Performance Epoxy Providing a Superior UV Resistance
THICKNESS: 8-10 mils
3- BASECOAT #2
LABPOX® 40 UV SUPER OPAQUE WHITE
THICKNESS: 8-10 mils
4- TOPCOAT
LABFENDER™ (NEW)
with Aluminum Oxide 240
Moisture-Cured Aliphatic Polyurethane
THICKNESS: 3 mils
GRAY FLOOR
1- PRIMER
LABPOX® PRIMER
VOC-Free Epoxy Primer
THICKNESS: 6-8 mils
2- BASECOAT #1
LABPOX® 30 GRAY
100% Solids, High-Performance Epoxy
THICKNESS: 8-10 mils
3- BASECOAT #2
LABPOX® 30 GRAY
THICKNESS: 8-10 mils
3- TOPCOAT
LABFENDER™ (NEW)
with Aluminum Oxide 240
Moisture-Cured Aliphatic Polyurethane
THICKNESS: 3 mils
WHITE FLOOR
1- PRIMER
LABPOX® PRIMER
VOC-Free Epoxy Primer
THICKNESS: 6-8 mils
2- BASECOAT #1
LABPOX® 40 UV SUPER OPAQUE WHITE
100% Solids, High-Performance Epoxy
Providing a Superior UV Resistance
THICKNESS: 8-10 mils
3- BASECOAT #2
LABPOX® 40 UV SUPER OPAQUE WHITE
THICKNESS: 8-10 mils
3- TOPCOAT
LABFENDER™ (NEW)
with Aluminum Oxide 240
Moisture-Cured Aliphatic Polyurethane
THICKNESS: 3 mils
GRAY FLOOR
1- PRIMER
LABPOX® PRIMER
VOC-Free Epoxy Primer
THICKNESS: 6-8 mils
2- BASECOAT #1
LABPOX® 30 GRAY
100% Solids, High-Performance Epoxy
THICKNESS: 8-10 mils
3- BASECOAT#2
LABPOX® 30 GRAY
THICKNESS: 8-10 mils
3- TOPCOAT
LABFENDER™ (NEW)
with Aluminum Oxide 240
Moisture-Cured Aliphatic Polyurethane
THICKNESS: 3 mils
ADVANTAGES
¹ Labsurface’s tests were performed at a range of 80-90°C (176-194°F). At those temperature levels the LABFENDER™ lasts up to 60x longer than any 1K or 2K products / technology that were tested with tires in laboratory by our R&D team.
TECHNICAL PROPERTIES
22°C / 72°F and 50% Rel. Hum.
| WHITE | GRAY | |
|---|---|---|
| ASTM D2370 Tensile Strength |
5300 psi | 7800 psi |
| ASTM D638 Elongation at Break |
15% | 7% |
| ASTM D695 Compressive Strength |
10200 psi | 13200 psi |
| ASTM D4060 Abrasion Resistance (Taber) |
20 mg | 20 mg |
| ASTM D2240 Shore D Hardness |
80 | 82 |
| ASTM E303 Coefficient of Friction |
1.3 | 1.3 |
Please refer to the product technical data sheets (TDS) for more detailed information and limitations, including specific ASTM standards and explanation.
Products Featured in the LABFLOOR 4E HANGAR System
The LABPOX® 40 UV is a 100% solids, VOC-free, two-component epoxy coating (2A:1B) offering excellent UV resistance and color stability. Designed for both performance and aesthetics, it delivers a smooth, durable finish with excellent clarity and gloss retention. Its high resistance to yellowing makes it ideal as a topcoat for decorative systems.
To complete your system with a matte, non-slip finish, LABFENDER is the ideal protective topcoat. Designed for high-performance exterior use, it delivers exceptional UV stability and chemical resistance, while reducing glare and enhancing surface safety. Its fine-textured finish adds a subtle yet effective anti-slip characteristic, making it a smart upgrade for pool decks that demand both aesthetics and functionality.
The LABPOX® PRIMER is a 100% solids, VOC-free, two-component epoxy primer (2A:1B) designed for concrete floors. It combines long working time with fast curing (as quick as 2h30), offers excellent penetration and adhesion, and features very low viscosity (300 cps). Formulated with high-performance cycloaliphatic amine technology, it delivers superior blush resistance and is ideal for heavy-traffic applications.
The LABPOX® 40 UV is a 100% solids, VOC-free, two-component epoxy coating (2A:1B) offering excellent UV resistance and color stability. Designed for both performance and aesthetics, it delivers a smooth, durable finish with excellent clarity and gloss retention. Its high resistance to yellowing makes it ideal as a topcoat for decorative systems.
To complete your system with a matte, non-slip finish, LABFENDER is the ideal protective topcoat. Designed for high-performance exterior use, it delivers exceptional UV stability and chemical resistance, while reducing glare and enhancing surface safety. Its fine-textured finish adds a subtle yet effective anti-slip characteristic, making it a smart upgrade for pool decks that demand both aesthetics and functionality.
